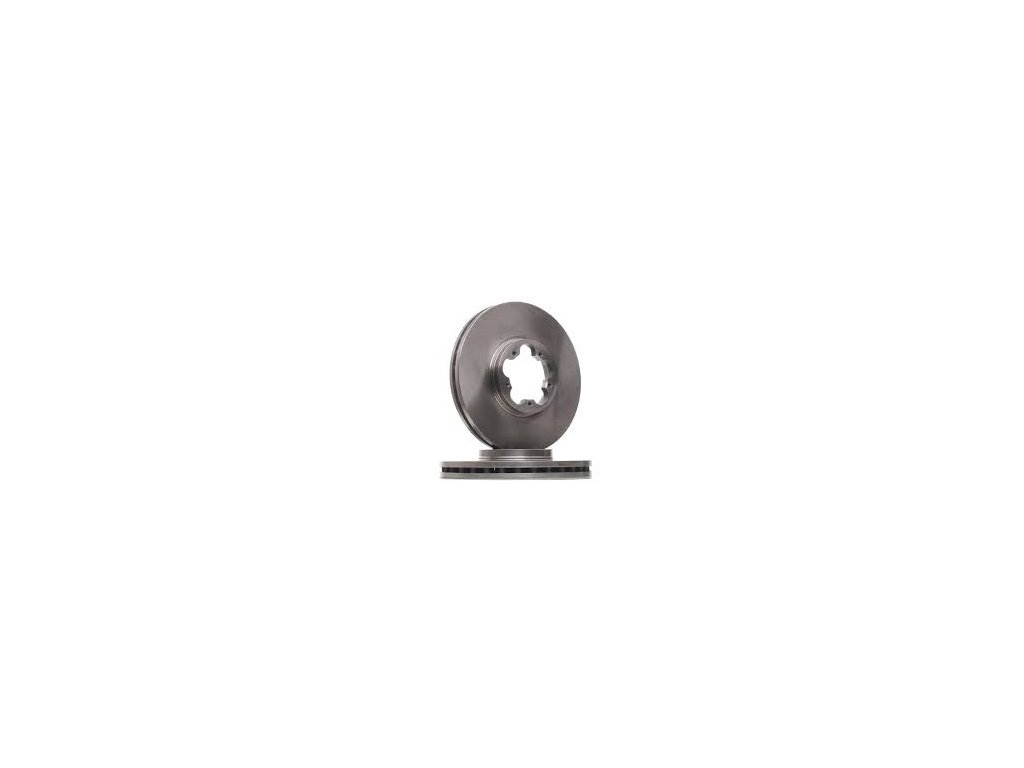

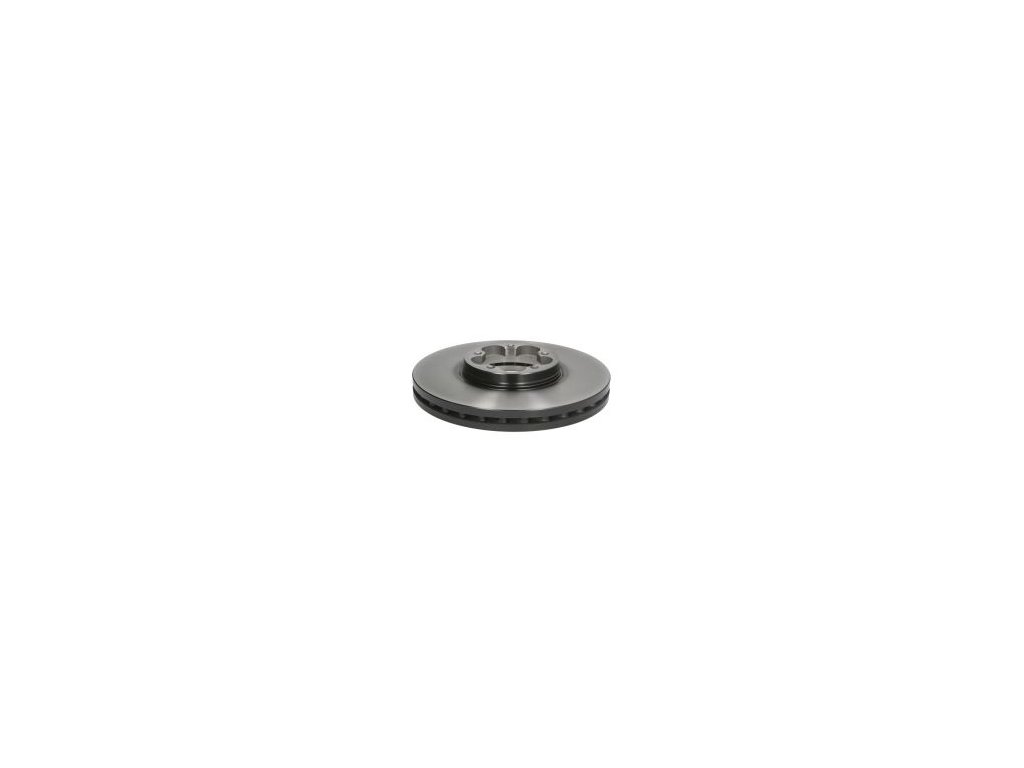

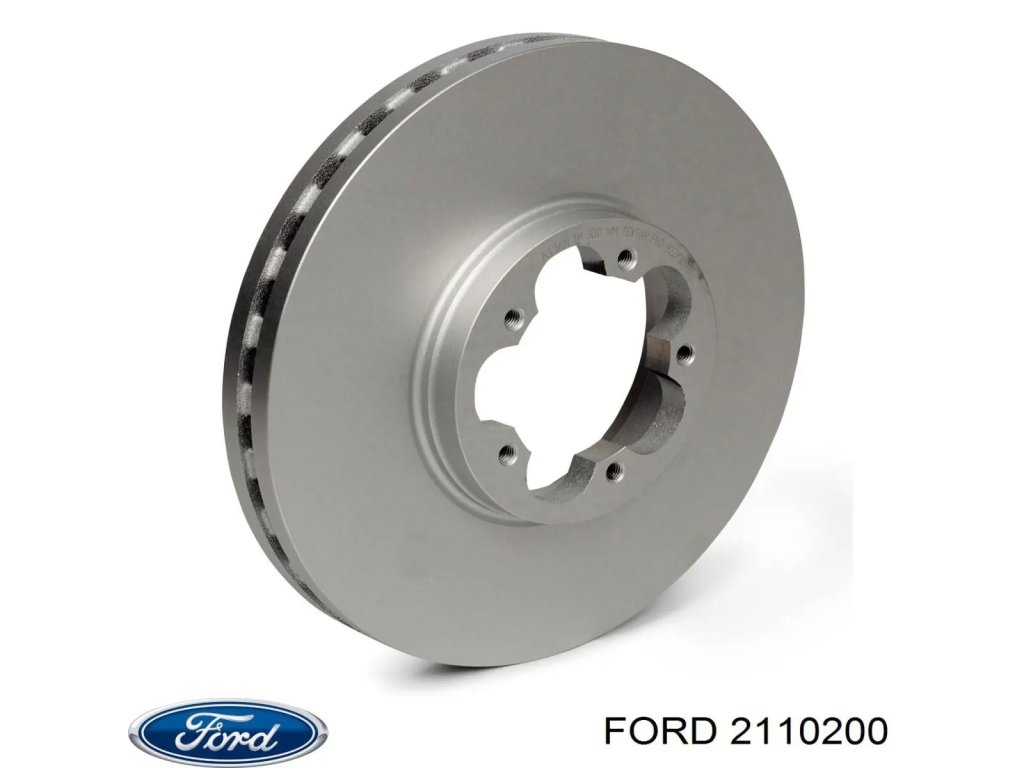

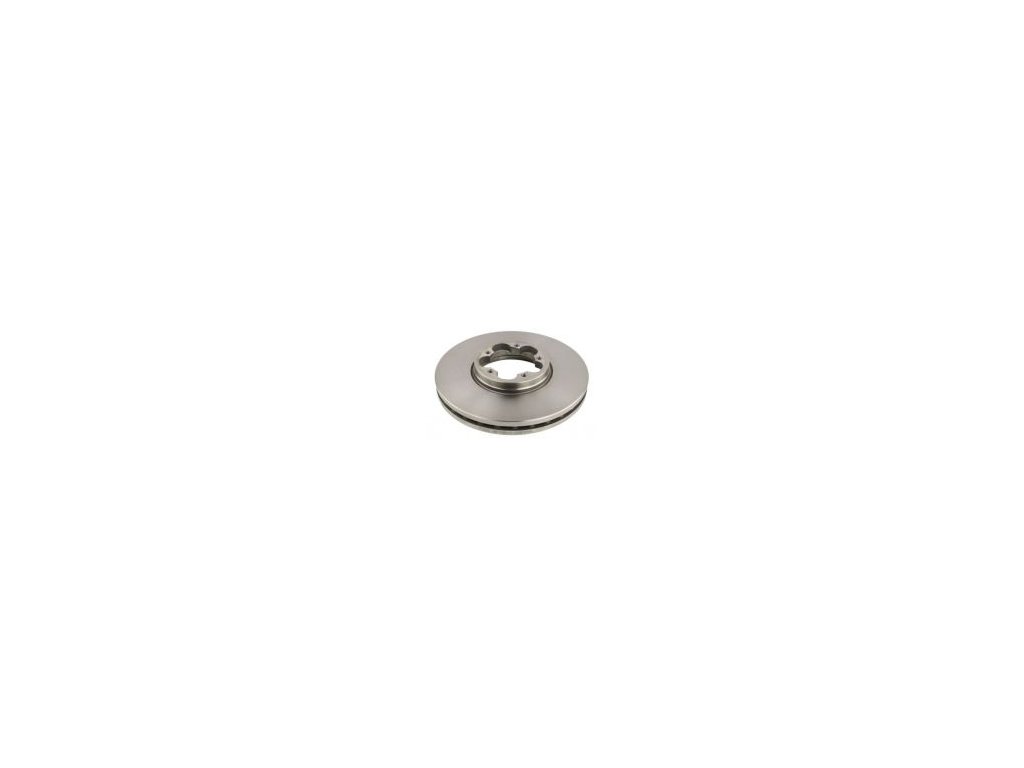

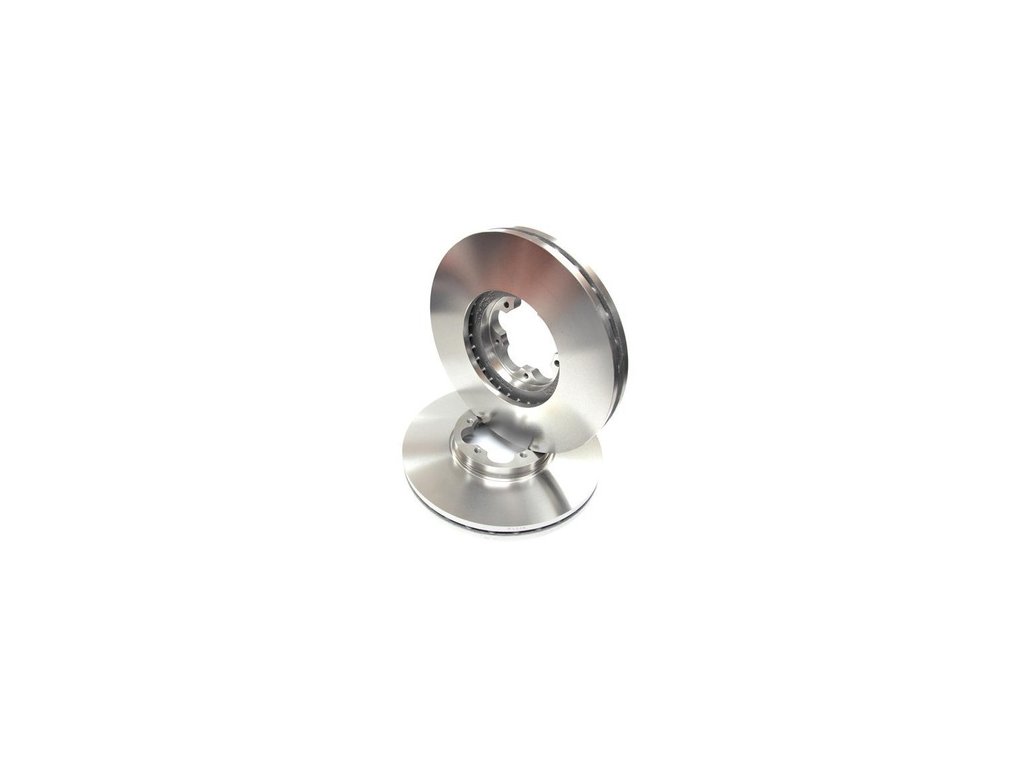

Ford Front Brake Disc BK21-1125-AD

Product detailed description

Original FORD brake discs.

Parameters:
Diameter [mm]: 308
Brake disc thickness [mm]: 33
Minimum thickness [mm]: 30
Brake disc type: ventilated
Finish: alloy / high carbon
Surface: coated
Number of holes: 5
Hole diameter [mm]: 111
Height [mm]: 55.3
Centre bore diameter [mm]: 93.1
Inner diameter [mm]: 136
Thread size: M10x1.5

For vehicles:

* FORD Transit Tourneo Custom from 09/2012 to → 01/2018
290S Sport, 290L Sport
330, 350, 390, 410, 470, wheels 6.5 x 16" with steel rims.
330, 350, 390, 410, 470, wheels with steel rims. 6 1/2J x 15
290S Sport, wheels with steel rims. 6 1/2J x 15
290S Sport, with alloy wheels 6.5 x 16"
290S Sport, wheels 6.5 x 16" with steel rims.
330, 350, 390, 410, 470, with alloy wheels 6.5 x 16"
320 SWB, wheels 6.5 x 16" with steel rim. - from: 08-01-2018
320 LWB, wheels 6.5 x 16" with steel rim. - from: 01-08-2018

* FORD Transit from 01/2014 to → 26/08/2019
from: 27-01-2014 to: 13-02-2017
all series 330, 350, 390, 410 and 470, with single rear wheels
from: 13-02-2017 to → 26/08/2019
all series 330, 350, 390, 410 and 470, with single rear wheels
from: 27-01-2014 to → 26/08/2019
all all-wheel drives and rear-wheel drives,
with single rear wheels rear
from: 27-01-2014 to: 16-08-2016
all cabin frames,
all series 250/60/70/80/90/300/10, front-wheel drive

OEM:
1842633, 2110200, 2256034, BK21-1125-A1D, BK21-1125-AC, BK21-1125-AD, 1763884, BK21-1125-AB, 1 842 633, 2 110 200, 2 256 034, BK211125A1D, BK211125AC, BK211125AD, 1 763 884, BK211125AB
